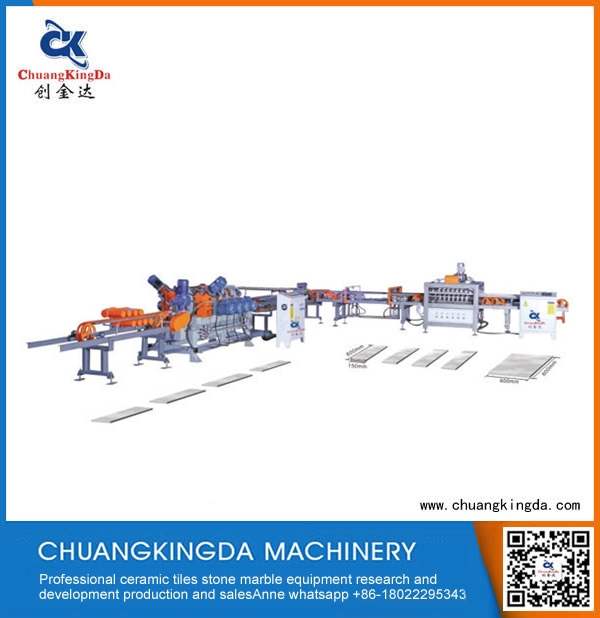

CKD-3 Dry Type Full Automatic Multi Blade Cutting Squaring Production Line

1. Introduction

CKD-3 Full Automatic Multi-Blade Dry Cutting & Squaring Line is an updated patent equipment mainly developed for waist lines and foundation lines. It can be used for cutting 600*600 mm & 800 *800 mm tiles into various sizes like 600*100, 600*120, 600*150, 600*200, 600*300mm. With this equipment, Problems like high cost, Low efficiency and bad quality that have been annoying tiles manufacturers will be solved.

2. Features

Flow-line production for waist lines and foundation lines can be fully accomplished. It can be used in continuous processing for varied waist lines sized 150mm, 120mm, 100mm, etc. Which has changed processing for waist lines and foundation lines with high labour force and cost to easy and automatic.

To sum up:

1) Full automation, The stable performance can free more hands to do something else.

2) Simple installation, Compatible to production line without too much revising to the machine.

3) Easy operation, Just a few hours’ training is sufficient for operators to learn how to use.

4) Low maintenant cost, All the consumables, Accessories and spare parts are in international standard.

5) Large amount of output. Up to 3000sqm per day.

6) Long Service life.

3. Parameters

ConfigurationMax size before cutWorking speedPowerAir consumptionWater consumptionTotal length
CKD-3 & 5+11200*8006times/min44.62kw250l/min240l/min17m
